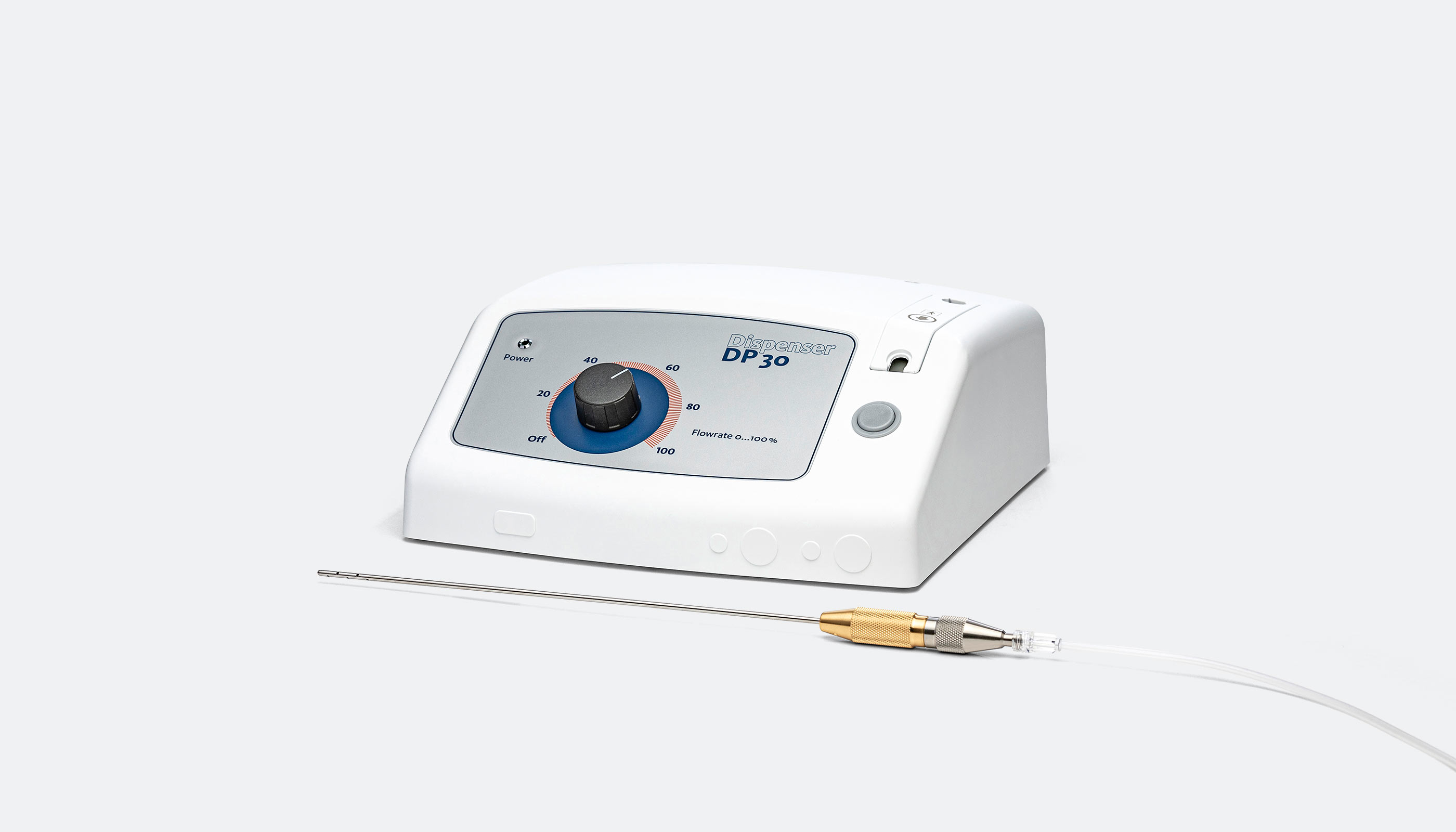

Dispenser DP 30

Reliable Infiltration Pump

The Dispenser DP 30 is a universally applicable and controllable infiltration pump, which is excellently suited for the use of tumescent applications in vein treatment.

Dispenser DP 30

Product details

  • Easy to Use, Maintenance-Free, and Low Noise
  • Time-Saving Compared to Manual Injection of Infiltration Volume
  • Continuously Adjustable and Precise Infiltration Power
  • Adjustable Flow Rate of Up to 12.5 L/H (230 mL/Min)
  • Can Be Operated With Either VARIO or ON/OFF Foot Switch
Dispenser DP 30

Technical data

Flow Rate

0 – 230 ml/min

Operation Voltage (switchable)

100 V~ / 115 V~ / 230 V~, 50 – 60 Hz

Power Consumption

40 VA

Protection Class

Class I

Classification of Application Part

Type BF* (Body Floating)

Fuses Power Supply

2 x T 1 A, 250 V AC

Dimensions  (W × D × H)

260 × 250 × 110 mm

Weight

2.4 kg

* Application parts are instruments that are used with the device.
